Basic Info.
Model NO.
cartridge heater
Material
Stainless Steel
Form
Heating Wire
Shape
Tubular
Dia Tolerance
+0.05mm -0.1mm (+.002" -.004")
Tube Diameter
3mm-30mm
Max Temperature
870c(1600f)
Application
Oil, Water, Other Liquid etc
After-Sales Service Provided
Overseas Third-Party Support Available
Power
5W-15W/2
Resistance Heating Wire
Nicr 80/20 Wire
Insulation Resistance (Cold)
≥ 500 MΩ
Maximum Leakage Current (Cold)
≤ 0.5 Ma
Thermocouple Location
Type J / K / Ground Wire
Length Tolerance
±1 mm
Resistance Tolerance
+10%, -5%
Transport Package
Paper Box
Specification
can be customized
Trademark
Kayson
Origin
China
HS Code
8516800000
Production Capacity
10000000/Year
Packaging & Delivery
Package Size
30.00cm * 30.00cm * 30.00cm
Package Gross Weight
1.000kg
Product Description

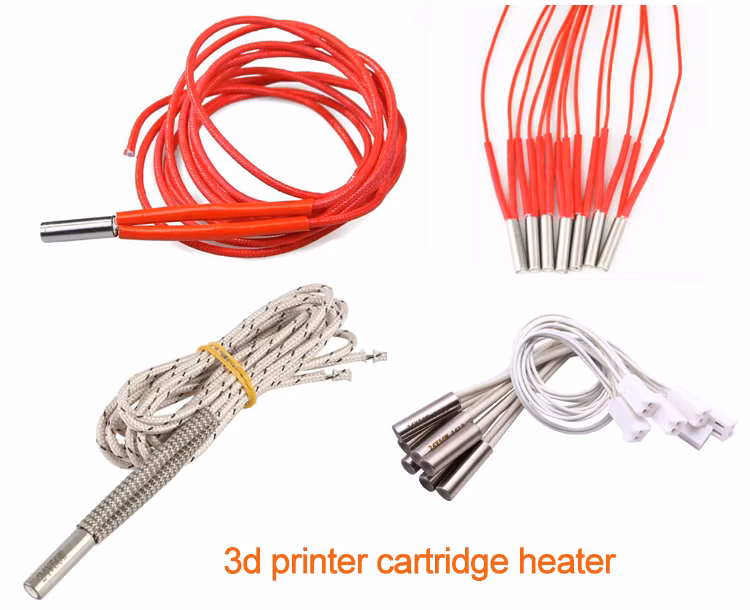

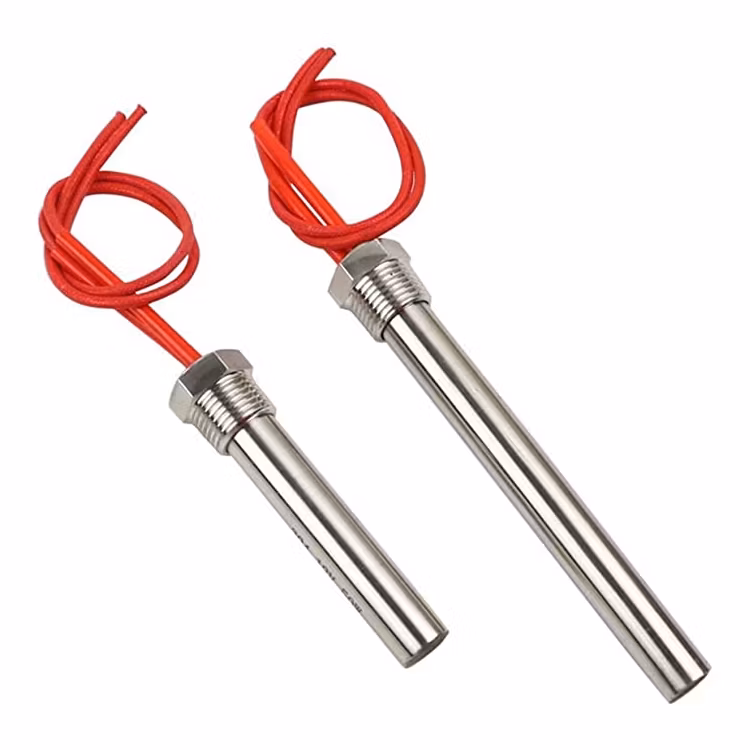

cartridge heater is an electric heating element that is typically cylindrical in shape and is used to provide localized heat in industrial and commercial applications. It is made of a resistive heating element, such as a Nichrome wire, that is embedded in a metal sheath.
Function:
1. Operating conditions: ambient temperature-20ºC ~ + 60ºC, relative temperature <80%;
2. Electrical strength: cold withstand voltage AC work 1500V 50Hz lasts for 1 min without breakdown phenomenon;
3. Thermal insulation performance: AC 1000V 50Hz lasts for 1 min without breakdown phenomenon;
4. Leakage current <0.5MA; Insulation resistance> 30MΩ;
When electric current is passed through the resistive heating element, it heats up and transfers heat to the metal sheath. The metal sheath then conducts the heat to the surrounding environment, providing localized heat in the area where the cartridge heater is installed.
Cartridge heaters are often used in applications such as plastic injection molding, hot stamping, and packaging equipment, where precise and consistent heating is required. They can also be used in laboratory and medical equipment, where precise temperature control is critical.
One advantage of cartridge heaters is their high heating capacity in a small size, which allows them to be easily installed in tight spaces. They are also highly customizable, with a variety of options for size, wattage, voltage, and other specifications.
Related Products
company profile
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
| Resistance heating wire | NiCr 80/20 wire |
| Wattage Tolerance | +5%, -10% |
| Resistance tolerance | +10%, -5% |
| Length tolerance | ±1 mm |
| Diameter tolerance | -0.02mm |
| Standard Cold Zone | 5-10mm |
| Insulation resistance (cold) | ≥ 500 MΩ |
| Maximum leakage current (cold) | ≤ 0.5 mA |
| Thermocouple Location | type J / K / Ground wire |
Advantages
internal wiring: high temperature resistance, uniform heating, high thermal conductivity and difficult cable fracture.
external wiring: high temperature resistance, uniform heating and high thermal conductivity.
Function: 1. Operating conditions: ambient temperature-20ºC ~ + 60ºC, relative temperature <80%;
2. Electrical strength: cold withstand voltage AC work 1500V 50Hz lasts for 1 min without breakdown phenomenon;
3. Thermal insulation performance: AC 1000V 50Hz lasts for 1 min without breakdown phenomenon;
4. Leakage current <0.5MA; Insulation resistance> 30MΩ;
When electric current is passed through the resistive heating element, it heats up and transfers heat to the metal sheath. The metal sheath then conducts the heat to the surrounding environment, providing localized heat in the area where the cartridge heater is installed.
Cartridge heaters are often used in applications such as plastic injection molding, hot stamping, and packaging equipment, where precise and consistent heating is required. They can also be used in laboratory and medical equipment, where precise temperature control is critical.
One advantage of cartridge heaters is their high heating capacity in a small size, which allows them to be easily installed in tight spaces. They are also highly customizable, with a variety of options for size, wattage, voltage, and other specifications.
